Ozone for water treatment

National standard of Ozone ratio is 0.4mg/L,keep this solubility for 4 Min.
(CT=1.6),below data is for reference

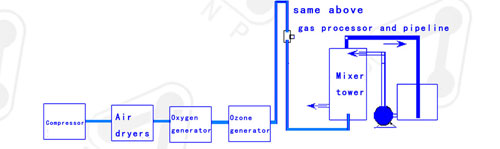

Mixer for gas and water connected picture 1.（Oxygen generator with non-air compressor by itself,need match non-oil compressor and air dryers above 8T water）

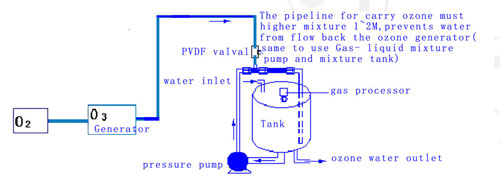

Mixer for gas and water connected picture 2.（Oxygen generator with non-air compressor by itself）

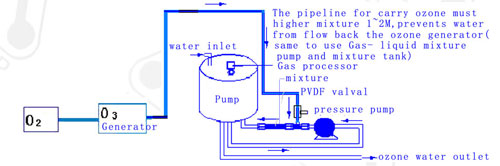

Mixer for gas and water connected picture 3.

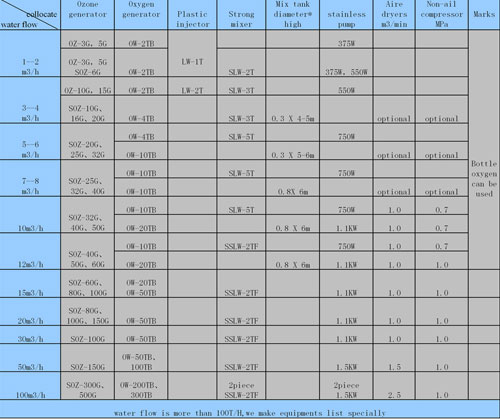

Equipment parameters for water sterilization after filtration
