OZ series ozone generator
This series of Ozone generator
apply transistor gate inverting
technology.Discharging room is consisted of
non-hydroxide crystal tube. There are special
designs to avoid water return. we apply module
design technology on electric board and choose good
anti-oxidation components for pipes、connectors and
other parts. These keep OZ series to be long
life、big discharge area、low working
temperature and high Ozone concentration.
Ⅰ、 Features:
1、Air cooling,adjustable Ozone output.
2、Special design to avoid water return.
3、Long life discharge cell, continuous running.
4、Stainless steel casing.
5、Two type gas source: compressed air or oxygen.
Ⅱ、 Components:
Discharge cell、stainless casing、60L air
compressor、current meter、150 fan

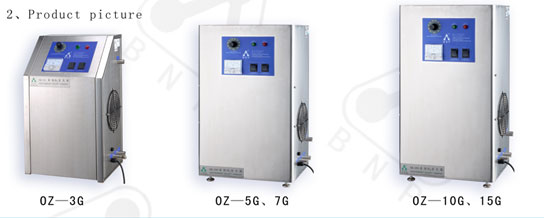

Ⅲ、 Product series:
OZ-3G-15G
Ⅳ、Data、diagram:
(Mark:the specification and picture maybe changed)

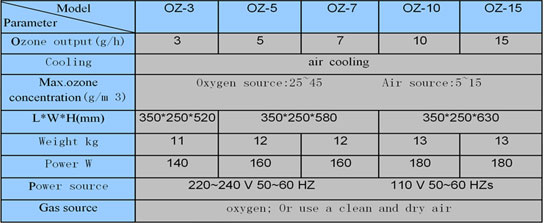

1、Specification
|
