SOZ-HSAquaculture sterilizing - oxygen feeding equipment

Ⅰ、Function：
    The equipment is for mariculture to sterilize and add Oxygen
    1、sterilize the bacterium and virus in the sea
    2、Oxygenize the organic matter in the water
    3、remove the ammon. azote and nitrite in the water
    4、add Oxygen
Ⅱ、Components：
    1、Indicated lamp for the power

    2、 indicate lamp for the working for Ozone
    3、adjust button for ozone yeild

    4、current gauge
    5、 indicate lamp for accident

    6、indicate lamp for the working for ozone
    7、 Volt gauge

    8、indicate lamp for working for compressor
    9、power swith

    10、the manual on-off for Oxygen
    11、the setting time for Ozone

    12、computer control system
Ⅲ、Operating principle：
    1. the equipment use the High concentration Oxygen as a source. through  frequency conversion product the Ozone then use the Ozone’s oxidizability to  disinfect and reduce the toxicity of pesticide residue.
    2. the Oxygen generator is made in America. By changing adsorbing pressure  (PSA), oxygen generators split oxygen from nitrogen, filtrate out poisonous  substance in air, then get high concentration oxygen which is up to medical  standard. Then dissolve the Ozone to the water by the pump, so get the high  concentration ozone water.
    3. Add the gas container for reserve air so the air compressor can work stable. Install the pressure control system for the air compressor. Assurance the life  of air compressor. As other function, the gas container can cool the air. Lengthen  the life of the Oxygen generator.

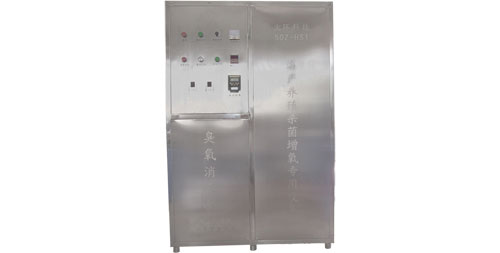

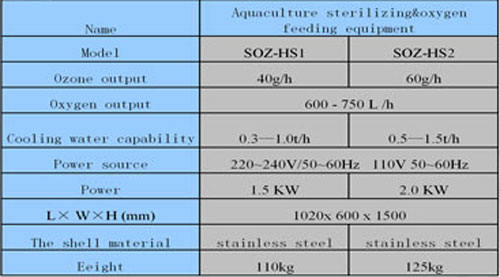

Ⅳ、Specification and picture： （Mark：the specification maybe changed)
