SOZ series strong ozone generator
SOZ Series ozone generators
use high reliability 、high efficiency and long life
non-hydroxide crystal titanic generating cell, The
cell is designed particularly with ozone resistant
double pipes. They are cooled by air or cool water.
SOZ Series use high quality components. Intelligent cell
design is the first creation in the world.(patented)
Ⅰ、Function:
1.Alarm for no ozone,but generator doesn’t stop
automatically,when ozone comes out,the generator
works normally. His function tells if the discharge
cell works well.There is no alarm when no ozone
output due to:a)no gas input;b)gas pipe has leakage
or wall up.
2.Alarm for water return. Stop generator, blow
with dry air or oxygen then switch on generator
again, when alarm stops after 3 seconds, the
generator works normally.
3.Alarm for over temperature and then generator
stops because:a)the fan meshwork is walled up;b)over
environment temperature.Generator will restart
automatically when temperature is below 50℃.
4.Alarm for PCB failure.
. Ⅱ、Components:
Discharge cell、stainless
casing、current meter、150 fan、flow meter、
ozone adjusting knob,air cooling below 32G,water
cooling up 32G.
Ⅲ、Features:
intelligent non-hydroxide crystal titanic
structure or non-hydroxide
crystal structure ozone generator,Special
long life design,High concentration ozone output,Low
power、small shape,2 years warranty.
Ⅳ、Product
series:
SOZ-6G、10G、16G、20G、25G、32G、40G、50G、60G、80G、100G、120G、150G、200G、300G、500G、600G、1000G、1500G、2000G……。SOZ-6G-200G
have stocks,need order up 200G.
Ⅴ、:Data、diagram(Mark:Specification、picture
maybe changed)

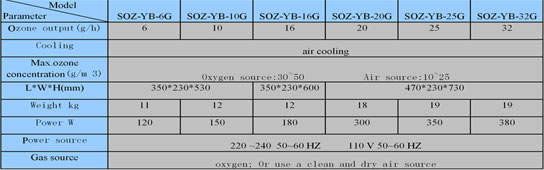

1、 SOZ—6G —32G specification
|
